Type W Three-Conductor Portable Power Cable 2kV

Applications

Type W Three-Conductor Portable Power Cables are designed for general use where baregrounding

conductors are not required ordesired .

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA C22.2 No. 96

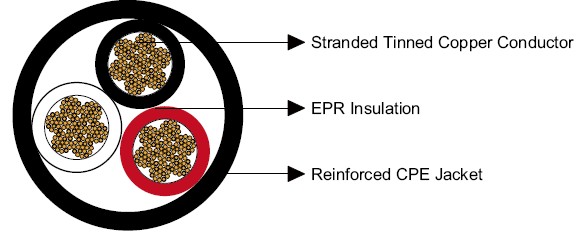

Construction

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be

offered as an option.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction	No. of Strands	Nominal Insulation Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
No. of cores×AWG/kcmil	-	inch	mm	inch	mm	lbs/kft	kg/km	A
3×8	133	0.06	1.5	0.91	23.1	550	818	59
3×6	133	0.06	1.5	1.01	25.7	730	1086	79
3×4	259	0.06	1.5	1.17	29.7	1020	1518	104
3×2	259	0.06	1.5	1.34	34.0	1430	2128	138
3×1	259	0.08	2.0	1.51	38.4	1800	2678	161
3×1/0	266	0.08	2.0	1.65	41.9	2140	3184	186
3×2/0	342	0.08	2.0	1.75	44.5	2580	3839	215
3×3/0	418	0.08	2.0	1.89	48.0	2922	4347	249
3×4/0	532	0.08	2.0	2.04	51.8	3800	5654	287
3×250	741	0.095	2.4	2.39	60.7	4368	6500	320
3×350	888	0.095	2.4	2.66	67.5	5895	8772	394
3×500	1221	0.095	2.4	2.98	75.8	7820	11638	487

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
