Type SHD Three-Conductor Flat Portable Power Cable 2kV

Applications

Type SHD Three-Conductor Flat Portable Power Cables are designed for use on continuous miners

requiringgrounding conductors and metallic shieldingover each conductor.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

Construction

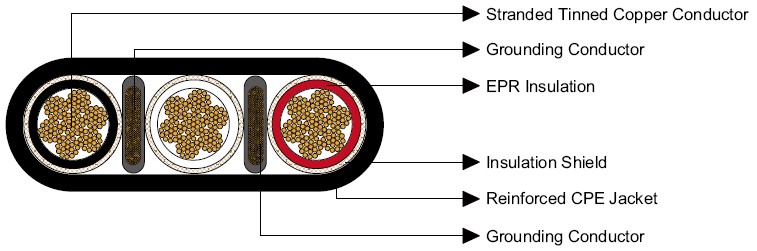

Type SHD Three-Conductor Flat Portable Power Cable 2kV

Conductors: Stranded annealed tinned copper conductor.

Insulation:EPR.

Insulation Shield:Tinned copper/textile braid.

Grounding Conductor:Tinned copper conductor with semi-conductive thermoset compound.

Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be

offered as an option.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Nominal Insulation Thickness Nominal Overall Diameter Height×Width Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil inch mm inch mm lbs/kft kg/km A
3×2 259 6 0.07 1.8 0.94×2.45 23.9×62.2 2243 3338 159
3×1 259 5 0.08 2.0 1.04×2.64 26.4×67.1 2540 3780 184
3×1/0 259 4 0.08 2.0 1.08×2.82 27.4×71.6 2915 4338 211
3×2/0 329 3 0.08 2.0 1.18×2.99 30.0×76.0 3346 4980 243
3×3/0 413 2 0.08 2.0 1.25×3.29 31.8×83.6 3890 5789 279

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
