Mining Cable
Type SHD-GC Three-Conductor Portable Power Cable, TPU Sheath15kV
Applications
Type SHD-GC Three-Conductor Portable Power Cables are designed for heavy mobile equipment such as drag
lines, shovels, dredges, drills and for power feeders.
Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

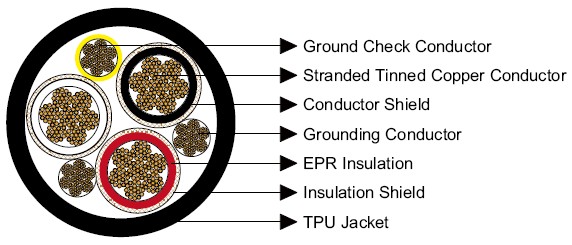

Construction
Conductors: Stranded annealed tinned copper conductor.
Insulation:EPR.
Insulation Shield:Tinned copper/textile braid.
Ground Check Conductor:Tinned copper conductor with a yellow polypropylene insulation.
Grounding Conductor:Tinned copper conductor.
Sheath: Thermoplastic Polyurethane (TPU) Jacket, black. Other sheath materials can be offered as an option.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
Maximum Operating Temperature: +90℃
Dimensions and Weight:
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Sheath Thickness | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of cores×AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×2 | 259 | 6 | 8 | 0.210 | 5.3 | 0.235 | 6.0 | 2.41 | 61.2 | 3145 | 4679 | 164 |
| 3×1 | 259 | 5 | 8 | 0.210 | 5.3 | 0.235 | 6.0 | 2.52 | 64.0 | 3567 | 5307 | 187 |
| 3×1/0 | 266 | 4 | 8 | 0.210 | 5.3 | 0.250 | 6.4 | 2.64 | 67.0 | 3976 | 5916 | 215 |
| 3×2/0 | 323 | 3 | 8 | 0.210 | 5.3 | 0.250 | 6.4 | 2.73 | 69.3 | 4526 | 6734 | 246 |
| 3×3/0 | 418 | 2 | 8 | 0.210 | 5.3 | 0.265 | 6.7 | 2.90 | 73.7 | 5231 | 7783 | 283 |
| 3×4/0 | 532 | 1 | 8 | 0.210 | 5.3 | 0.265 | 6.7 | 3.05 | 77.5 | 6033 | 8976 | 325 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
