Mining Cable

Type SHD-GC Three-Conductor Portable Power Cable, CPE Sheath 15kV

Applications

Type SHD-GC Three-Conductor Portable Power Cables are designed for applications such as longwall

shearers, continuous miners and mobile equipment such as shovels, dredges and drills.

Standards

ICEA S-75-381/NEMA WC 58

ASTM B 172

ASTM B 33

CAN/CSA-C22.2 No.96

CAN/CSA C22.2 No. 96

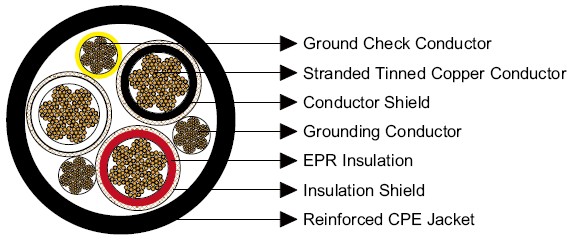

Construction

Type SHD-GC Three-Conductor Portable Power Cable, CPE Sheath 15kV

Conductors: Stranded annealed tinned copper conductor.

Conductor Shield:Semi-conducting layer.

Insulation:EPR.

Insulation Shield:Non-conducting tape + Tinned copper/textile braid.

Ground Check Conductor:Tinned copper with a yellow polypropylene insulation.

Grounding Conductor:Tinned copper conductor.

Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materialscan be

offered upon request.

Options:

Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

Minimum Bending Radius: 6×OD

Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction No. of Strands Grounding Conductor Size Ground Check Conductor Size Nominal Insulation Thickness Nominal Sheath Thickness Nominal Sheath Thickness Nominal Weight Ampacity
No. of cores×AWG/kcmil - AWG/kcmil AWG/kcmil inch mm inch mm inch mm lbs/kft kg/km A
3×2 259 6 8 0.210 5.3 0.235 6.0 2.41 61.2 3572 5529 164
3×1 259 5 8 0.210 5.3 0.235 6.0 2.52 64.0 4060 6042 187
3×1/0 259 4 8 0.210 5.3 0.250 6.4 2.64 67.0 4495 6927 215
3×2/0 329 3 8 0.210 5.3 0.250 6.4 2.73 69.3 5010 7783 246
3×3/0 413 2 8 0.210 5.3 0.265 6.7 2.90 73.7 5995 8922 283
3×4/0 532 1 8 0.210 5.3 0.265 6.7 3.05 77.5 6860 10209 325

Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
