Mining Cable
Type SHD-CGC Three-Conductor Portable Power Cable 2kV
Applications
Type SHD-CGC Three-Conductor Portable Power Cables are designed for applications such as longwall shearers,
continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment requiring grounding
conductors, where a ground check conductor, and metallic shielding are required.
Standards
ICEA S-75-381/NEMA WC 58
ASTM B 172
ASTM B 33
CAN/CSA C22.2 No. 96

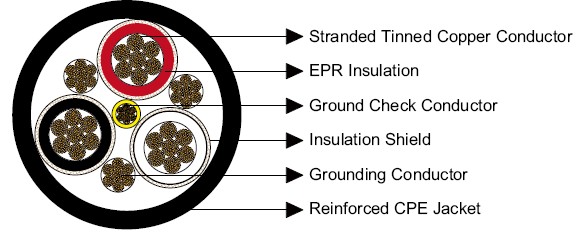

Construction
Conductors: Stranded annealed tinned copper conductor.
Insulation:EPR.
Insulation Shield:Non-conducting tape + Tinned copper/textile braid.
Ground Check Conductor:Tinned copper with a yellow insulation, located in the center of the cable.
Grounding Conductor:Tinned copper conductor.
Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be
offered as an option.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 6×OD
Maximum Operating Temperature: +90℃
Dimensions and Weight:
Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
No. of cores×AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
3×2/0 | 342 | 5 | 16 | 0.08 | 2.0 | 0.205 | 5.2 | 2.09 | 53.1 | 3400 | 5059 | 243 |
3×3/0 | 418 | 4 | 16 | 0.08 | 2.0 | 0.205 | 5.2 | 2.21 | 56.1 | 3934 | 5853 | 279 |
3×4/0 | 532 | 3 | 16 | 0.08 | 2.0 | 0.220 | 5.6 | 2.36 | 59.9 | 4860 | 7231 | 321 |
3×350 | 888 | 1 | 16 | 0.95 | 2.4 | 0.250 | 6.3 | 2.81 | 71.4 | 7400 | 11010 | 435 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
