Mining Cable
Type MP-GC Three-Conductor Mine Power Feeder Cable, PVC Sheath, 5kV
Applications
Type MP-GC Three-Conductor Mine Power Feeder Cables are designed for connections between units of mine
distribution systems, suitable fordirect burial in wet and dry locations.
Standards
ICEA S-75-381/NEMA WC 58
ASTM B-8
CAN/CSA C22.2 No. 96

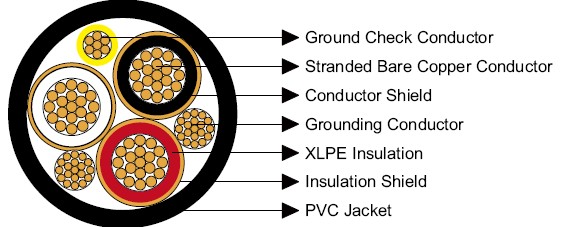

Construction
Conductors: Stranded annealed bare copper conductor.
Conductor Shield:Semi-conducting layer.
Insulation:XLPE.
Insulation Shield:Semi-conducting layer + copper tape.
Ground Check Conductor:Copper conductor with a yellow polypropylene insulation.
Grounding Conductor:Tinned copper conductor.
Sheath: PVC, black. Other sheath materials can be offered as an option.
Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.
Mechanical and Thermal Properties
Minimum Bending Radius: 12×OD
Maximum Operating Temperature: +90℃
Dimensions and Weight:
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No. of cores×AWG/kcmil | - | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×4 | 7 | 8 | 8 | 0.09 | 2.3 | 0.11 | 2.8 | 1.41 | 35.8 | 1224 | 1821 | 122 |
| 3×2 | 7 | 6 | 8 | 0.09 | 2.3 | 0.11 | 2.8 | 1.47 | 37.3 | 1653 | 2459 | 159 |
| 3×1 | 19 | 5 | 8 | 0.09 | 2.3 | 0.11 | 2.8 | 1.54 | 39.1 | 1950 | 2901 | 184 |
| 3×1/0 | 19 | 4 | 8 | 0.09 | 2.3 | 0.11 | 2.8 | 1.63 | 41.4 | 2200 | 3273 | 211 |
| 3×2/0 | 19 | 3 | 8 | 0.09 | 2.3 | 0.11 | 2.8 | 1.72 | 43.7 | 2721 | 4048 | 243 |
| 3×3/0 | 19 | 2 | 8 | 0.09 | 2.3 | 0.14 | 3.6 | 1.89 | 48.0 | 3170 | 4720 | 279 |
| 3×4/0 | 19 | 1 | 8 | 0.09 | 2.3 | 0.14 | 3.6 | 2.01 | 51.0 | 3845 | 5721 | 321 |
| 3×250 | 37 | 1/0 | 8 | 0.09 | 2.3 | 0.14 | 3.6 | 2.10 | 53.3 | 4321 | 6429 | 355 |
| 3×350 | 37 | 2/0 | 8 | 0.09 | 2.3 | 0.14 | 3.6 | 2.31 | 58.7 | 5652 | 8409 | 435 |
| 3×500 | 37 | 4/0 | 8 | 0.09 | 2.3 | 0.14 | 3.6 | 2.59 | 65.8 | 7721 | 11487 | 536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
