Mining Cable

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened

Applications

Type 2S individually copper screened cables are used for wiring of machines or between machines and

equipment wherea rubber cable is desired. These cables are also used for longwall lighting circuits, and may

contain pilot and controlcores or twisted pair and screened cores.

Standards

Type 2S 1.1/1.1KV & 3.3/3.3KV Individually Screened

AS/NZS 1972:2006

AS/NZS 1125

AS/NZS 3808

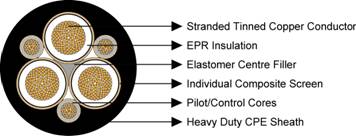

Construction

Conductors: Stranded tinned annealed copper conductor.

Insulation: EPR.

Filling: Elastomer centre filler.

Pilot/Control Cores:EPR covered and composite screened flexible stranded tinned copper conductor.

IndividualComposite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.

Sheath: Heavy duty CPE sheath.

Dimensions and Weight

Number of Core Nominal Conductor Area Strand Size Insulation Thickness Core screen Pilot Conductor Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
Strand Size Area
of Screen
Number of Pilots Strand Size Thickness of Covering
mm² No/mm mm mm mm² No/mm mm mm mm kg/100m
Type 2S 1.1/1kV Individually Screened
10 77/0.40 3 1.2 0.2 7.9 3 1.8 22.1 69
10 77/0.40 4 1.2 0.2 7.9 4 1.8 23.0 93
16 126/0.40 2 1.2 0.2 9.0 2 1.8 22.0 81
16 126/0.40 3 1.2 0.2 9.0 3 1.8 23.4 100
16 126/0.40 4 1.2 0.2 9.0 4 1.8 26.8 135
10 77/0.40 3 1.2 0.2 7.9 3 30/0.20 1.0 1.8 22.5 87
16 126/0.40 2 1.2 0.2 9.0 2 30/0.20 1.0 1.8 22.7 88
16 126/0.40 3 1.2 0.2 9.0 3 30/0.20 1.0 1.8 27.7 130
25 209/0.40 3 1.4 0.2 11.3 3 30/0.20 1.0 1.8 29.2 165
35 285/0.40 3 1.4 0.2 12.4 3 30/0.20 1.0 1.8 31.6 200
50 380/0.40 3 1.6 0.25 17.5 3 30/0.20 1.0 1.9 36.1 260
Type 2S 1.1/1kV Individually and Collectively Screened
1.5 30/0.25 30 1.0 0.3 14.0 1.9 32.6 170
Type 2S 3.3/3.3Kv Individually Screened
10 77/0.40 3 3.0 0.2 11.3 3 30/0.25 1.0 1.8 28.9 130
16 126/0.40 3 3.0 0.2 12.4 3 30/0.25 1.0 1.8 31.3 160
25 209/0.40 3 3.0 0.2 13.6 3 30/0.25 1.0 1.9 34.8 210
35 285/0.40 3 3.0 0.2 15.3 3 30/0.25 1.0 2.0 37.8 250
50 380/0.40 3 3.0 0.2 17.0 3 30/0.25 1.0 2.1 41.3 305
70 203/0.67 3 3.0 0.3 30.5 3 30/0.25 1.0 2.2 46.8 415
95 259/0.67 3 3.0 0.3 30.5 3 30/0.25 1.0 2.3 49.6 490
120 336/0.67 3 3.0 0.4 47.5 3 30/0.25 1.0 2.5 55.0 620
