Mining Cable
Type 1 1.1/1.1KV Collectively Screened
Applications
Type 1 1.1/1.1KV Collectively Screened cables are used for wiring of machines, or between machines and
equipment where PVC is suitable
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

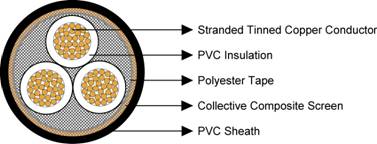

Construction
Conductors: Stranded copper conductor.
Insulation: PVC.
Bedding: Polyester tape.
Collective Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester
yarn.
Sheath: PVC sheath.
Dimensions and Weight
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | |
|---|---|---|---|---|---|---|---|---|
| Strand Size | Area of Screen |
|||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| Type 1 – Collectively Screened | ||||||||
| 2 | 1.5 | 30/0.25 | 0.8 | 0.20 | 2.3 | 0.8 | 9.2 | 12 |
| 3 | 1.5 | 30/0.25 | 0.8 | 0.20 | 2.5 | 0.8 | 9.7 | 15 |
| 4 | 1.5 | 30/0.25 | 0.8 | 0.20 | 2.6 | 0.8 | 10.5 | 18 |
| 6 | 1.5 | 30/0.25 | 0.8 | 0.20 | 3.4 | 0.8 | 12.6 | 25 |
| 16 | 1.5 | 30/0.25 | 0.8 | 0.20 | 5.1 | 1.0 | 18.7 | 55 |
| 30 | 1.5 | 30/0.25 | 0.8 | 0.25 | 8.8 | 1.3 | 24.6 | 96 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
