PROFIBUS 1 Pair 0.35mm²
Application
PROFIBUS 1 Pair 0.35mm² are dedicated for fixed installation on board of ship, used as connection cables for
digital signals up to 12MBd.
Standards
DIN VDE 0472 part 805
IEC 60332-1&2
IEC 60754-1/2
IEC 61034

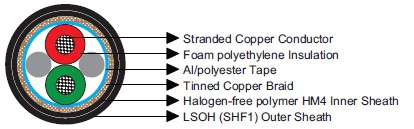

Construction
Conductors: Stranded bare copper.
Insulation: Foam polyethylene (cellular HDPE).
Overall Screen1: Aluminium/polyester tape.
Overall Screen2: Tinned copper braid.
Inner Sheath: Halogen-free polymer HM4.
Outer Sheath: LSOH (SHF1).
Core Identification
Core 1: Red
Core 2: Green
Electrical Properties
Characteristic Impedance | Ω | 150 ± 15 |
---|---|---|
Mutual Capacitance @1KHz | nF/km | 30 |
Insulation Resistance | MΩ.km | 16000 |
Attenuation @9.6kHz | dB/km | 3 |
Attenuation @38.4kHz | dB/km | 5 |
Attenuation @4kHz | dB/km | 22 |
Attenuation @16kHz | dB/km | 45 |
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -35℃ ~ +80℃
Dimensions and Weight
Part No. | Construction No. of elements×No. of cores in element×Cross section (mm²) |
Core Diameter mm | Nominal Overall Diameter mm |
Nominal Weight kg/km |
---|---|---|---|---|
MLN-02Y(ST)CH-1×2×0.35 | 1×2×0.35 | 2.75 | 10.3 | 110 |
