Firetox Flame Retardant Cables

Flame Retardant Instrumentation Cables

Flame Retardant Overall Screened Instrumentation Cables (multicore)

RE-2X(St)H

RE-2X(St)HSWAH



Application

The unarmoured LSZH versions (Part 1 Type 1&2) cables are generally use for indoor installation and suitable for

wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and

voice transmission signals and services, Also used for the interconnection of electrical equipment and

instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to BS 5308 Part1 Type1 & 2

Flame Retardant Overall Screened Instrumentation Cables (multicore)

Fire Performance

Flame Retardance

(Single Vertical

Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE

0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-

1*; DIN VDE 0482-265-2-1*

Reduced Fire

Propagation

(Vertically-mounted

bundled wires

& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-

004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-

4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas

Emission

 IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

minimum Smoke

Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-

1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

Voltage Rating

300/500V

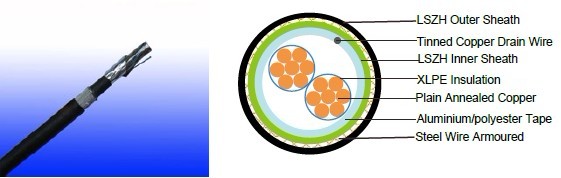

Cable Construction

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 and 5 .

Insulation: Extruded cross-linked XLPE compound.

Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.

Inner Sheath(optional): LSZH compound

Armouring(optional): Galvanised steel wire

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound

type SW2-SW4 as per BS 7655-2.6 can be offered.)

Colour Code

Insulation Colour: See technical information

Outer sheath: Black or blue

Physical And Thermal Properties

Temperature range during operation: Max.90°C for XLPE

250°C in short-circuit for 5s max.

Minimum bending radius: 8 x Overall Diameter (unarmoured cable)

10 x Overall Diameter (armoured cable)

Construction Parameters

Conductor   RE-2X(St)H RE-2X(St)HSWAH
No. of Core X
Cross
Section		 No./ Nominal
Diameter
of
Strands		 Nominal Insulation
Thickness		 Unarmoured Armoured
Nominal
Overall
Diameter		 Approx.
Weight		 Diameter
Under
Armour		 Armour
Wire
Diameter		 Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm kg/km mm mm mm kg/km
2x0.5 16/0.20 0.6 7.0 50 7.0 0.90 11.4 237
3x0.5 16/0.20 0.6 7.3 59 7.3 0.90 11.7 254
4x0.5 16/0.20 0.6 7.9 69 7.9 0.90 12.3 278
6x0.5 16/0.20 0.6 9.3 94 9.3 0.90 13.9 345
10x0.5 16/0.20 0.6 11.9 147 11.9 0.90 16.7 470
20x0.5 16/0.20 0.6 14.9 253 14.9 1.25 20.6 759
40x0.5 16/0.20 0.6 20.1 444 20.1 1.60 26.7 1229
2x0.75 24/0.20 0.6 7.3 57 7.3 0.90 11.7 251
3x0.75 24/0.20 0.6 7.7 68 7.7 0.90 12.1 272
4x0.75 24/0.20 0.6 8.3 81 8.3 0.90 12.9 310
6x0.75 24/0.20 0.6 9.9 114 9.9 0.90 14.5 379
10x0.75 24/0.20 0.6 12.7 179 12.7 0.90 17.5 522
20x0.75 24/0.20 0.6 16.0 311 16.0 1.25 21.7 858
40x0.75 24/0.20 0.6 21.7 555 21.7 1.60 28.5 1420
2x1.5 7/0.53 0.6 8.3 78 8.3 0.90 12.9 300
3x1.5 7/0.53 0.6 8.9 103 8.9 0.90 13.5 345
4x1.5 7/0.53 0.6 9.7 125 9.7 0.90 14.3 377
6x1.5 7/0.53 0.6 11.7 163 11.7 0.90 16.3 490
10x1.5 7/0.53 0.6 14.7 285 14.7 1.25 20.4 773
20x1.5 7/0.53 0.6 18.7 504 18.7 1.60 25.3 1262
40x1.5 7/0.53 0.6 24.6 935 24.6 1.60 31.6 1968
