Flame Retardant Coaxial Cables
Flame Retardant RG59 B/U CWB/SWB/SWA Armoured Coaxial Cables
APPLICATION
Flame Retardant RG59 B/U CWB/SWB/SWA Armoured Coaxial Cables are suitable for installation on board
of ships and other indoor marine environments.
STANDARDS
Basic design adapted to MIL-C-17
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
|---|---|
Reduced Fire Propagation (Vertically-ounted bundled wires & cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

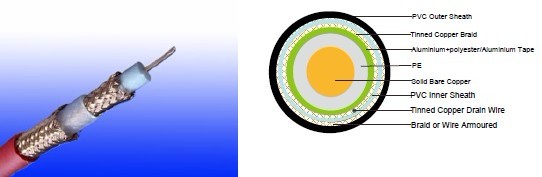

CABLE CONSTRUCTION
Conductors: 20AWG solid bare copper.
Insulation: PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: PVC compound.
Armouring:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent
and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC
60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable
design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature Range: -30°C - +75°C
Minimum Bending Radius: 15 X Overall Diameter
Electrical Properties
| AWG | 20 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 0.8 |
| Impedance | Ω | 75+/-5 |
| Nominal Attenuation@100MHz | dB/100m | 7.6 |
| Nominal Attenuation@270MHz | dB/100m | 12.5 |
| Nominal Attenuation@540MHz | dB/100m | 17.9 |
| Nominal Attenuation@720MHz | dB/100m | 20.9 |
| Nominal Attenuation@750MHz | dB/100m | 21.3 |
| Nominal Attenuation@1000MHz | dB/100m | 24.9 |
| Capacitance | pF/m | 53.5 |
| Velocity of Propagation | % | 83 |
| Conductor DCR | Ω/km | 32.8 |
| Shield DCR | Ω/km | 12.5 |
| Inductance | μH/m | 0.318 |
| Time Delay | ns/m | 4.0 |
CONSTRUCTION PARAMETERS
| Cable Code | Nominal Inner Conductor Diameter |
Nominal Insulation Thickness |
Nominal Outer Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|---|
| mm | mm | mm | mm | kg/km | |
| FGD-RG59 B/U CWB | 0.58 | 1.4 | 1.2 | 9.78 | 146 |
| FGD-RG59 B/U SWB | 0.58 | 1.4 | 1.2 | 9.78 | 114 |
| FGD-RG59 B/U SWA | 0.58 | 1.4 | 1.2 | 10.8 | 220 |
Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information
