Flame Retardant Data Cables
Flame Retardant CAT5e CWB/SWB/SWA Armoured Data Cables
FGD-CAT5e U/UTP4P24 cwb/swb/swa
FGD-CAT5e f/UTP4P24 cwb/swb/swa
FGD-CAT5e sf/FTP4P24 cwb/swb/swa
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data
installations up to 100 MHz. In addition,Flame Retardant CAT5e CWB/SWB/SWA Armoured Data Cables can
be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically
protection still maintaining the flexibility of the cable.
STANDARDS
Basic design adapted to EN50173
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
|---|---|
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30- 004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2- 4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
60V

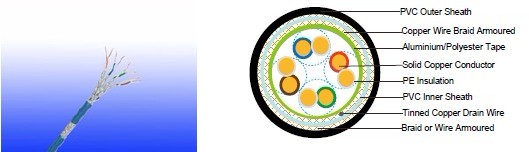

CABLE CONSTRUCTION
Conductors: 24AWG solid bare copper.
Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Flame retardant, low smoke and halogen-free polyolefin, coloured black
Armouring:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent
and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC
60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable esign
. LSPVC can also be provided upon request.
Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape& copper wire braid.
Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
| AWG | 24 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 0.5/0.53 |
| Maximum DC Resistant@20°C | Ω/100m | 9.38 |
| Maximum DCR Unbalance | % | 5 |
| Maximum Mutual Capacitance | pF/m | 55.8 |
| Maximum Capacitance Unbalance | pF/100m | 330 |
| Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
| Maximum Propagation Delay Skew | ns/100m | 45 |
Transmission Properties
| FREQ MHz | Maximum Attenuation dB/100m |
Minimum NEXT dB |
Minimum PSNEXT dB |
Minimum ELFEXT dB/100m |
Minimum PSELFEXT dB/100m |
Minimum RL dB |
|---|---|---|---|---|---|---|
| 0.772 | 1.8 | 67.0 | 64.0 | 66.0 | 63.0 | — |
| 1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
| 8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
| 20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
| 25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
| 62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
| 100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |

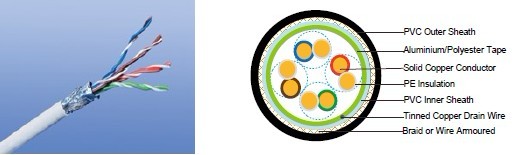

FGD Cat5E SF/UTP
CONSTRUCTION PARAMETERS
| Cable Code | Construction No. of elements×No. of cores in element×Conductor diameter |
Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Nominal Outer Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | kg/km | |
| FGD-CAT5E U/UTP CWB | 4×2×0.5 | 0.2 | 0.6 | 1.0 | 7.68 | 97 |
| FGD-CAT5E U/UTP SWB | 4×2×0.5 | 0.2 | 0.6 | 1.0 | 7.68 | 93 |
| FGD-CAT5E U/UTP SWA | 4×2×0.5 | 0.2 | 0.6 | 1.0 | 8.68 | 165 |
| FGD-CAT5E F/UTP CWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.28 | 116 |
| FGD-CAT5E F/UTP SWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.28 | 112 |
| FGD-CAT5E F/UTP SWA | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 9.28 | 192 |
| FGD-CAT5E SF/UTP CWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.76 | 123 |
| FGD-CAT5E SF/UTP SWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.76 | 119 |
| FGD-CAT5E SF/UTP SWA | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 9.76 | 216 |
