RG59 Coaxial Cable + 2C0.75 NYM Cable + 1P18AWG Instrumentation Cable + 1C18AWG Grounding Cable + Messenger Wire Unarmored PVC Elastomer Sheathed Elevator Composite Cable

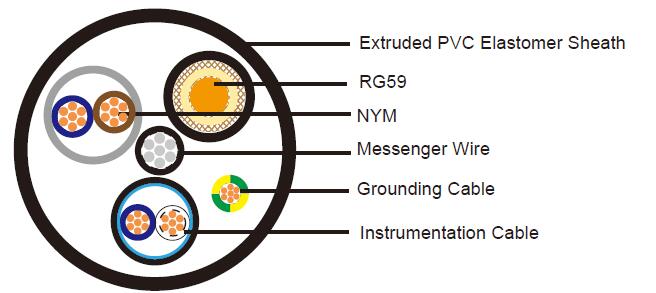

Construction:

RG59 Coaxial Cable + 2C0.75 NYM Cable + 1P18AWG Instrumentation Cable + 1C18AWG Grounding Cable + Messenger Wire Unarmored PVC Elastomer Sheathed Elevator Composite Cable

75Ohm RG59 Coaxial Cable

Conductor:Copper Clad Steel Conductor

Insulation:Polyethylene

Shield:Braid of bare copper wire, coverage ≥ 85%

Sheath:PVC elastomer

Sheath Color:Black

2C0.75MMSQ NYM 500V

Conductor:Flexible stranded copper

Insulation:PVC. Thickness 0.6mm

Insulation Color:Blue and Brown

Sheath:PVC elastomer. Thickness 0.6mm. Gray color

1P18AWG Instrumentation Cable 300V

Conductor:Flexible stranded copper

Insulation:XLPE. Thickness 0.6mm

Insulation Color:Blue and White

Shield:Braid of bare copper wire, coverage ≥ 85%

Sheath:PVC elastomer. Thickness 0.6mm

Sheath Color:Black

1C18AWG Grounding Cable 300V

Conductor:Flexible stranded copper conductor

Insulation:PVC. Thickness 0.6mm

Insultion Color:Green/Yellow

Messenger Wire

Conductor:Stranded steel wire

Insulation:PVC. Thickness 0.6mm

Insultion Color:Black

Element Assembly

Outer Sheath:Extruded PVC elastomer. Thickness 2.5mm.

Overall Diameter:Nominal outer diameter 21.0±2.0mm

Sheath Color:Black. Other color available as per request

Electrical and Physical Properties @20°C:

RG59 Coaxial Cable

Impedance: 75±3Ohm (@1MHz)

Max. Attenuation: 7.5dB/100m @50MHz

2C0.75MMSQ NYM Cable

Working Voltage: 500V

Test Voltage: 2000V

Insulation Resistance: >20 MOhmxkm

1P18AWG Instrumentation Cable

Working Voltage: 300V

Test Voltage: 1500V

Insulation Resistance: ≥1000 MOhmxkm

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
