1xRG6 + 2x16mmsq Power cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

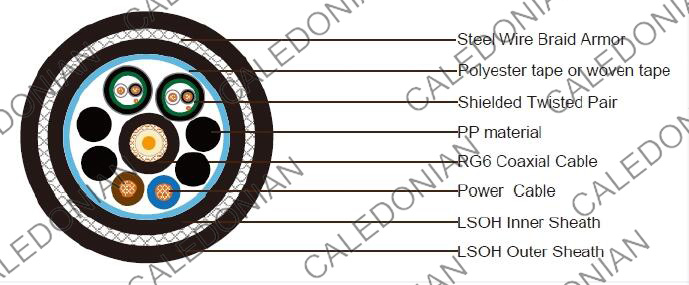

Construction:

1xRG6 + 2x16mmsq Power cable + 2x1x2x24AWG Data Pairs SWB LSZH Sheathed Composite Cable

(1)RG6 Coaxial Cable (in the center of the cable core)

Conductor: 1.02mm solid bare copper wire Insulation: PE

Insulation Diameter: 4.57mm

Shield 1: Al-polyester tape

Shield 2: Bare copper wire braid - 95%

Sheath: LSZH

Nominal Overall Diameter: 6.91mm

Sheath Color: Black

(2)2 x (1 x 2 x 24AWG) Shielded Twisted Pair (around coaxial cable)

Conductor: 7/0.2mm stranded tinned copper wire

Insulation: PVC

Thickness of Insulation: 0.4mm

Insulation Color: Black/White

Shield: Al-polyester tape with 24AWG tinned copper drain wire

Sheath: LSZH

Sheath Thickness: 0.76mm

Nominal Overall Diameter: 4.8mm Sheath Color: Black/Grey

 i)2×1×16mm² Power Cable (around coaxial cable)

Conductor: 7/1.7mm stranded tinned copper wire Insulation: XLPE

Insulation Color: Blue/Brown

Insulation Thickness: 0.7mm

2) Element Assembly Filler: PP

Wrapping Tape: Polyester tape or woven tape

Inner Sheath: LSZH

Inner Sheath Color: Black

Armor: Steel Wire Braid - 85%

Outer Sheath: LSZH

Outer Sheath Color: Black

Overall Diameter: 25.0+/-2mm

Electrical Properties @20℃:

1. Coaxial Cable

Max. Conductor Resistance at 20°C:    22Ohm/km

Impedance:  75±3Ohm

Max. Attenuation:5.2dB/100m @50MHz

Data Pairs

Electrical Resistance: 90Ohm/km

Insulation Resistance: ≥200 MOhm x km

Power Cable

Max. Conductor Resistance at 20°C:    1.16Ohm/km

Insulation Resistance: ≥1000 MOhm x km

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
