Composite Cables
Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

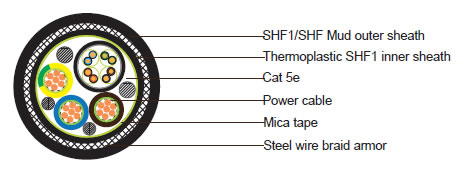

Construction:
CAT5E 4x2x24AWG
Conductor:Solid copper conductor
Insulation:Polyethylene/Silicone Rubber
Fire Barrier:Mica tape
Sheath:FRLSZH sheath. Nominal outer diameter 9.5mm
Sheath Color:Black
3x2.5mm² Power Cable
Conductor:2.5mm² Stranded tinned copper wire
Fire Barrier:Mica tape
Insulation:XLPE. Nominal outer diameter 5.0mm
Insulation Color:Blue, Brown and Green/Yellow
Element Assembly
Inner Sheath:PE or PP material
Fire Barrier:Mica tape
Inner Sheath:Thermoplastic SHF1, black, thickness 1.0mm
Armor:Galvanized steel wire braid, coverage 95%
Outer Sheath:SHF1/SHF Mud, thickness 1.5mm,nominal outer diameter 23.0±1.5mm
Sheath Color:Black
Electrical and Physical Properties @20°C:

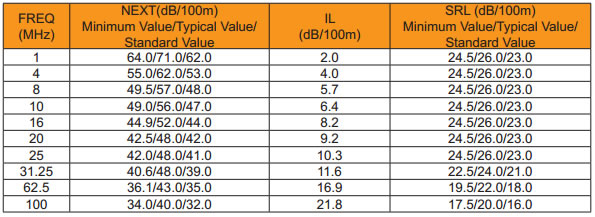

Cat5e
Power Cable
Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm
Element Assembly:
Min Bending Radius: 420mm
Operating Temperature:-30°C/+80°C
Fire Performance:
Low Smoke Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation:IEC60332
Fire Resistant:IEC60331
Mud Resistant:NEK606
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
