Cat 5e+3x2.5 Power Cable Galvanized Steel Wire Braid Armor FRLSOH Sheathed Composite Cable

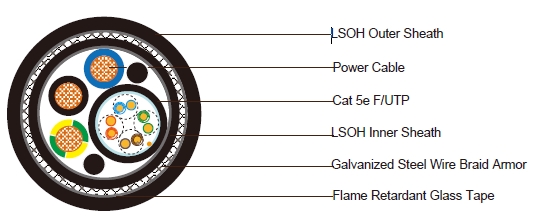

Construction:

Cat 5e+3x2.5 Power Cable Galvanized Steel Wire Braid Armor FRLSOH Sheathed Composite Cable



Cat5e F/UTP Cable

Conductor:0.50mm Solid copper conductor

Insulation:Polyethylene. Thickness 1.56mm

Shield:Aluminium polyester tape with 0.5mm tinned copper drain wire

Sheath:FRLSOH sheath. Thickness 1.0mm. Nominal outer diameter is 6.7mm

Sheath Color:Black

3x2.5mm² Power Cable

Conductor:2.5mm² 7/0.67mm stranded tinned copper wire

Insulation:XLPE. Thickness 0.7mm, Nominal outer diameter is 3.44mm

Insultion Color:Blue, Black and Green/Yellow

Element Assembly

Filler(optional)    PP or PE

Wrapping:Flame retardant glass tape

Inner Sheath:Black FRLSOH

Armor:0.2mm galvanized steel wire braid

Outer Sheath:LSOH with flame retardant glass fibre tape inside
water resistant
oil resistant
sunlight and UV resistant
aliphatic hydrocarbon resistant
gas / vapour tight(optional)
Thickness 1.7mm. Nominal overall diameter 17.5+/-1.5mm

Sheath Color:Black or grey

Electrical and Physical Properties @20°C:

Cat 5e F/UTP(1-100MHz)

Max. Electrical Resistance: 93.8 Ohm/km Min.

Insulation Resistance: 2000 MOhm/km

Operating Temperature: -20°C/+90°C

Max. Resistance Unbalance: 5%

Max. Mutual Capacitance: 5.6nF/100m

Max. Capacitance Unbalance: 330pF/100m

Characteristic Impedance : 100 ± 15 (1-100MHz)

Nominal Velocity of Propagation: 69%

Max. Propagation Delay : 536ns/100m@100MHz

Max. Propagation Delay skew : 30ns/100m Power Cable

Max. Electrical Resistance: 7.56 Ohm/km

Min. Insulation Resistance: 1000 MOhm/km

Operating Temperature: -20°C/+90°C Voltage rating: 0.6/1KV

Cable Assembly

Min Bending Radius: 420mm

Operating Temperature: -30°C/+80°C

Fire Performance

Low Smoke Capacity: IEC61034-1/2

Halogen Free: IEC60754-1/2

Flame Propagation: IEC60332

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
