 Medium Voltage XLPE Insulated Steel Wire Armored Cable to IEC 60502-2

Cables for Oil Industry

Applications

These cables are suitable for installation mostly in power supply stations, indoors and in cable ducts,
outdoors, underground and in water as well as for installation on cable trays for industries, switchboards
and power stations, where require chemical and mechanical protection.

Standards

IEC 60228; IEC 60502-2

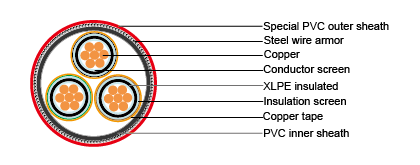

Construction

Conductor:

Stranded bare copper (class 2)

Condutor screen:

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen.

Insulation:

XLPE

Insulation screen:

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Core identification:

1 Core: Natural
3 Cores: Black, Green, Brown

Inner sheath:

PVC

Armor:

Galvanized steel wires or aluminum wires for 1 core cable

Outer sheath:

Special PVC. Color: red. U.V resistance can be offered upon request.

Properties

Fire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
