 Medium Voltage XLPE Insulated Overall Screened Cable to IEC 60502-2

Cables for Oil Industry


These cables are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors,

underground and in water as well as for installation on cable trays for industries.


IEC 60228; IEC 60502-2

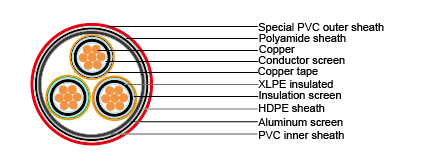

Stranded bare copper (class 2)

Conductor screen:

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple

extrusion process over the conductor along with the insulation and the insulation screen.



Insulation screen:

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process

over the insulation.

Core identification:

1 Core: Natural

3 Cores: Black, Green, Brown

Inner sheath:

PVC Color black

Overall screen:

Aluminum/polyethylene tape


HDPE Color: black

Special sheath (intermediate sheath):


Outer sheath:

Special PVC. Color: red. U.V resistance can be offered upon request.


Fire retardance: IEC 60332-3-22

Operating temperature: -20~60°C

Max. conductor operating temperature: 90°C

Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
