H05V-K UL/H07V-K UL-UL/CSA/HAR/MTW&UL1015 PVC

Application and Description

H05VK UL / H07V-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved PVC
European flexible single-conductor wires. Can be found in appliance wiring and machine tool wiring as well
as in control systems. They may also be used in pipes and flexible conduits. Recommended for the internal
wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for
international use in North American & European countries and for MRO replacement of international made
equipment wire.

Standard and Approval

<HAR> HD 21.7 S2, VDE-0281 Part-3,UL-Standard and Approval 1063 MTW, UL-AWM Style 1015, CSA
TEW, CSA-AWM I A/B, FT-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

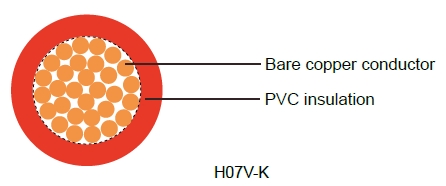

Cable Construction

- Fine tinned copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5, HD383 Class-5
- Special PVC TI3 core insulation
- Cores to VDE-0293 colors
- H05V-K UL (22, 20 & 18 AWG)
- H07V-K UL (16 AWG and Larger)
- X05V-K UL & X07V-K UL for non-HAR colors

Technical Characteristics

- Working voltage: 300/500v (H05V-K UL)
- Working voltage: 450/750v (H07V-K UL)
- Working voltage UL/CSA: 600v AC, 750v DC.
- Test voltage: 2500 volts
- Flexing/Static bending radius: 10-15 x Ø
- Temperature HAR/IEC: -40º to +70º C
- Temperature UL-AWM: -40º to +105º C
- Temperature UL-MTW: -40º C to +90º C
- Temperature CSA-TEW: -40º C to +105º C
- Flame retardant: IEC 60332.1, FT-1
- Insulation resistance: 20 MΩ x km



Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area # x mm²
Nominal Thickness of Insulation
mm
Nominal Overall Diameter
mm
Nominal Copper Weight
kg/Km
Nominal Weight kg/Km
20(16/32)
1 x 0.5
0.6
2.5
4.9
11
18(24/32)
1 x 0.75
0.6
2.7
7.2
14
17(32/32)
1 x 1
0.6
2.9
9.6
17
16(30/30)
1 x 1.5
0,7
3.1
14.4
20
14(50/30)
1 x 2.5
0,8
3.7
24.0
32
12(56/28)
1 x 4
0,8
4.4
38.0
45
10(84/28)
1 x 6
0,8
4.9
58.0
63
8(80/26)
1 x 10
1,0
6.8
96.0
120
6(128/26)
1 x 16
1,0
8.9
154.0
186
4 (200/26)
1 x 25
1,2
10.1
240
261
2 (280/26)
1 x 35
1,2
11.4
336
362
1 (400/26)
1 x 50
1,4
14.1
480
539
2/0 (356/24)
1 x 70
1,4
15.8
672
740
3/0 (485/24)
1 x 95
1,6
18.1
912
936
4/0 (614/24)
1 x 120
1,6
19.5
1152
1184
