H05G-K/H07G-K

Application and Description

These cables are recommended for the internal wiring of switchboards and distributor boards as well as
in operating parts in or on lights. The higher temperature range allows for connections to heaters with an
alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for
laying in tubes in and under plaster.

Standard and Approval

<HAR> HD 22.7 S2, VDE-0282 Part-7, CEI 20-19/7, CEI 20-35(EN60332-1), CE Low Voltage Directive
73/23/EEC and 93/68/EEC, ROHS compliant

Cable Construction

- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
- Cores to VDE-0293 colors

Technical Characteristics

- Working voltage: 300/500v (H05G-K), 450/750v (H07G-K)
- Test voltage: 2000volts (H05G-K), 2500 volts (H07G-K)
- Flexing bending radius: 7 x Ø
- Static bending radius: 7 x Ø
- Flexing temperature: -25º C to +110º C
- Static temperature: -40º C to +110º C
- Short circuit Temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 10 MΩ x km



Cable Parameter

AWG
No. of Cores x Nominal Cross Sectional Area #x mm²
Nominal Thickness of Insulation
mm
Nominal
Overall Diameter
mm
Nominal Copper Weight kg/Km
Nominal Weight kg/Km

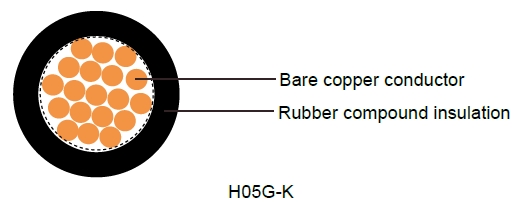

H05G-K
20(16/32)
1 x 0.5
2.3
4.8
13
18(24/32)
1 x 0.75
0.6
2.6
7.2
16
17(32/32)
1 x 1
0.6
2.8
9.6
22
H07G-K
16(30/30)
1 x 1.5
0.8
3.4
14.4
24
14(50/30)
1 x 2.5
0.9
4.1
24
42
12(56/28)
1 x 4
1.0
5.1
38
61
10(84/28)
1 x 6
1.0
5.5
58
78
8(80/26)
1 x 10
6.8
96
130
6(128/26)
1 x 16
1.2
8.4
154
212
4(200/26)
1 x 25
1.4
9.9
240
323
2(280/26)
1 x 35
1.4
11.4
336
422
1(400/26)
1 x 50
1.6
13.2
480
527
2/0(356/24)
1 x 70
1.6
15.4
672
726
3/0(485/24)
1 x 95
1.8
17.2
912
937
4/0(614/24)
1 x 120
1.8
19.7
1152
1192
