 Cables de Fibra óptica

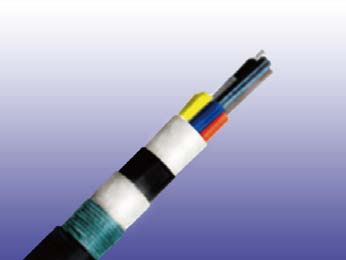

Multi Loose Tube Ribbon Fiber Cable
Solicitud
This cable can provide excellent transmission performance and protection of fibers in a variety of field environments. It is usually used in long haul communication system, subscriber network system, distribution, feeder network system and local area network system.
Descripción
The cable consists of 12 to 648 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each tube contains 4 -12 ribbon fibers. Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. An optional ripcord is located under the jacket to facilitate jacket removal.

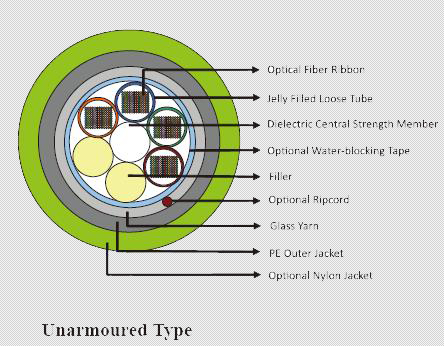

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
12-96 |
195.0 |
130.87 |
18.5 |
0.727 |
2670/600 |
890/200 |
108-228 |
320.0 |
214.77 |
22.0 |
0.865 |
2670/600 |
890/200 |
288-648 |
400.0 |
268.46 |
24.5 |
0.963 |
2670/600 |
890/200 |

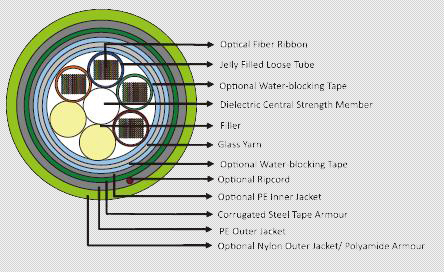

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
12-96 |
280.0 |
187.92 |
22.5 |
0.885 |
2670/600 |
890/200 |
108-288 |
400.0 |
268.46 |
25.0 |
0.983 |
2670/600 |
890/200 |
288-648 |
500.0 |
335.57 |
29.0 |
1.141 |
2670/600 |
890/200 |
Propiedades mecánicas
| Radio de curvatura mínima: |
|
Compresión de carga máxima: |
4000N for unarmored cables; |
| En virtud de instalación: |
20×OD |
|
6000N for armoured cables |
| Durante la operación |
10×OD for unarmoured cables |
Impacto repetido: |
4.4 N.m (J) |
| |
20×OD for armoured cables |
Twist (torsión): |
180×10 times, 125×OD |
| Gama de temperatura: |
|
Flexión cíclica: |
25 cycles for armoured cables. |
| Rango de temperaturas de funcionamiento: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Rango de Temperatura de almacenamiento: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistencia: |
220N/cm (125lb/in) |
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado |
Flammability Test: OFNR/FT4 (UL1666) |
Pleno de Grado |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grado |
Flammability Test: IEC60332-1 |
LSZH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
LSFROH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grado |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Características
• Large fiber counts with small cable diameter
• Highly adaptable to mass splicing
• Suitable for installation in pipeline
• High quality jelly filled loose tube provides the ribbon fiber satisfactory mechanical and environmental protection.
• Ripcord allows easy jacket removal
• UV or moisture resistant for outdoor application
• Dry water blocking core design for ease of handling
|
