 Cables de Fibra óptica
Multi Loose Tube Non-Metallic Cable
Solicitud
The multi loose tube non metallic cable is designed for outside plant, which is prone to electrical interference.
Descripción

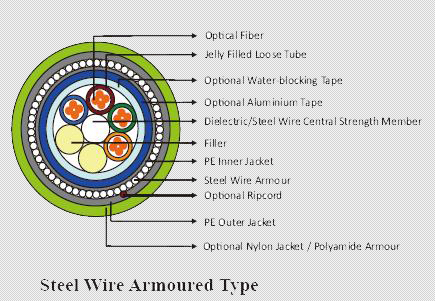

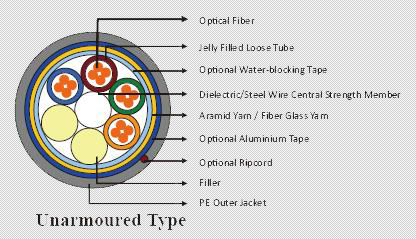

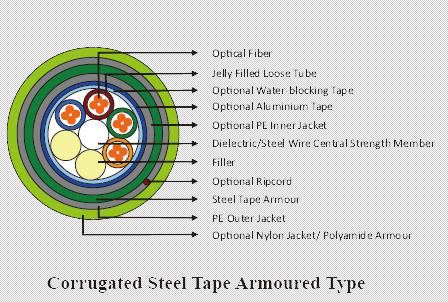

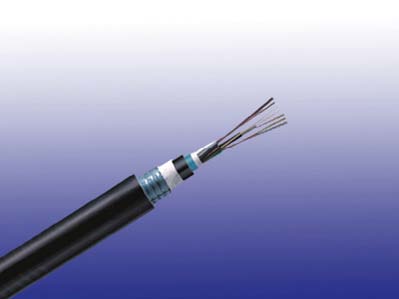

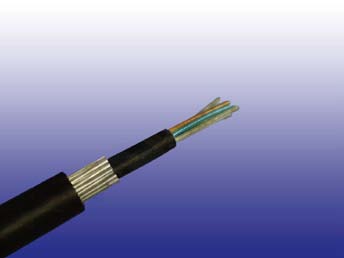

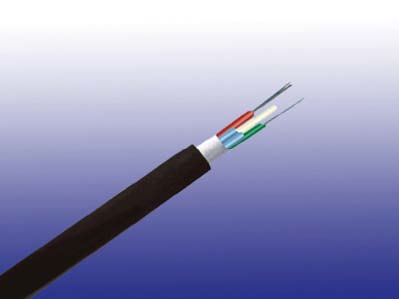

The cable consists of 5 to 36 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each tube contains 4 -12 fibers. Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fi ber glass is wound around the tube to provide physical protection and tensile strength. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. A ripcord is located under the jacket to facilitate jacket removal.
Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-36 |
110.0 |
73.83 |
120. |
0.472 |
2670/600 |
800/180 |
38-72 |
120.0 |
80.54 |
12.6 |
0.496 |
2670/600 |
800/180 |
74-84 |
135.0 |
90.60 |
13.5 |
0.531 |
2670/600 |
800/180 |
76-96 |
150.0 |
100.67 |
14.0 |
0.551 |
2670/600 |
800/180 |
98-108 |
170.0 |
114.09 |
15.0 |
0.590 |
2670/600 |
800/180 |
110-120 |
190.0 |
127.52 |
15.5 |
0.610 |
2670/600 |
800/180 |
122-132 |
210.0 |
140.94 |
16.5 |
0.649 |
2670/600 |
800/180 |
134-144 |
230.0 |
154.36 |
17.5 |
0.688 |
2670/600 |
800/180 |
146-216 |
250.0 |
167.79 |
18.0 |
0.708 |
2670/600 |
800/180 |
218-264 |
300.0 |
201.34 |
19.5 |
0.767 |
2670/600 |
800/180 |
266-312 |
350.0 |
234.90 |
21.0 |
0.826 |
2670/600 |
800/180 |
314-360 |
400.0 |
268.46 |
22.5 |
0.885 |
2670/600 |
800/180 |
Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-36 |
210.0 |
140.94 |
15.0 |
0.590 |
2670/600 |
800/180 |
38-72 |
230.0 |
154.36 |
15.5 |
0.610 |
2670/600 |
800/180 |
74-84 |
250.0 |
167.79 |
16.5 |
0.649 |
2670/600 |
800/180 |
76-96 |
270.0 |
181.21 |
17.0 |
0.669 |
2670/600 |
800/180 |
98-108 |
295.0 |
197.98 |
17.5 |
0.688 |
2670/600 |
800/180 |
110-120 |
320.0 |
214.77 |
18.5 |
0.728 |
2670/600 |
800/180 |
122-132 |
355.0 |
238.26 |
19.0 |
0.748 |
2670/600 |
800/180 |
134-144 |
370.0 |
248.32 |
20.0 |
0.787 |
2670/600 |
800/180 |
146-216 |
390.0 |
261.74 |
21.0 |
0.826 |
2670/600 |
800/180 |
218-264 |
455.0 |
305.35 |
22.5 |
0.885 |
2670/600 |
800/180 |
266-312 |
515.0 |
345.64 |
24.0 |
0.944 |
2670/600 |
800/180 |
314-360 |
580.0 |
389.26 |
26.0 |
1.023 |
2670/600 |
800/180 |
Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-36 |
700.0 |
469.80 |
21.0 |
0.826 |
8000/1800 |
2650/595 |
38-72 |
830.0 |
557.05 |
23.5 |
0.925 |
8000/1800 |
2650/595 |
74-84 |
870.0 |
583.89 |
24.0 |
0.944 |
8000/1800 |
2650/595 |
76-96 |
900.0 |
604.03 |
24.5 |
0.964 |
8000/1800 |
2650/595 |
98-108 |
950.0 |
637.58 |
26.0 |
1.023 |
8000/1800 |
2650/595 |
110-120 |
1000.0 |
671.14 |
27.0 |
1.062 |
8000/1800 |
2650/595 |
122-132 |
1050.0 |
704.70 |
28.0 |
1.102 |
8000/1800 |
2650/595 |
134-144 |
1100.0 |
738.26 |
29.0 |
1.141 |
8000/1800 |
2650/595 |
146-216 |
1300.0 |
872.48 |
31.0 |
1.220 |
8000/1800 |
2650/595 |
218-264 |
1400.0 |
939.60 |
33.0 |
1.299 |
8000/1800 |
2650/595 |
266-312 |
1500.0 |
1006.71 |
35.0 |
1.377 |
8000/1800 |
2650/595 |
314-360 |
1600.0 |
1073.83 |
37.0 |
1.456 |
8000/1800 |
2650/595 |
Propiedades mecánicas
| Radio de curvatura mínima: |
|
Compresión de carga máxima: |
4000N for unarmored cables; |
| En virtud de instalación: |
20×OD |
|
6000N for armoured cables |
| Durante la operación |
10×OD for unarmoured cables |
Impacto repetido: |
4.4 N.m (J) |
| |
20×OD for armoured cables |
Twist (torsión): |
180×10 times, 125×OD |
| Gama de temperatura: |
|
Flexión cíclica: |
25 cycles for armoured cables. |
| Rango de temperaturas de funcionamiento: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Rango de Temperatura de almacenamiento: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistencia: |
220N/cm (125lb/in) |
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado |
Flammability Test: OFNR/FT4 (UL1666) |
Pleno de Grado |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grado |
Flammability Test: IEC60332-1 |
LSZH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
LSFROH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grado |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Características
• Loose Tube construction provides environmental protection
• Loose tube jelly filled for superior fi ber protection
• Colored coded fibers and binders for quick and easy identification during installation.
• UV resistant for outdoor application
• Dry water blocking core design for ease of handling
• Anti-termite and rodent protection as options
• Optional Aluminium moisture barrier for EMI protection and water protection
|
