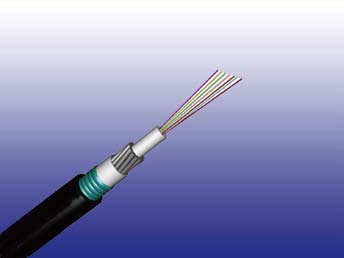

Central Loose Tube Under Water Cable
Solicitud
This cable exhibits excellent tensile strength and side press retardancy, having excellent mechanical and environmental performance. Featured by its thin diameter and light weight, it is best suited for underwater condition, junction communication system and long haul communication system.
Descripción
Central loose tube cable contains one tube with 2 - 24 fibers, which is filled with water blocking gel. A water swelling tape is helically wrapped around the cable core. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. The cable is jacketed with PE for water protection purpose. For direct burial, steel wire armour and corrugated steel tape armour are applied with an optional PE inner jacket. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. An optional ripcord can be put under the jacket to facilitate jacket removal.

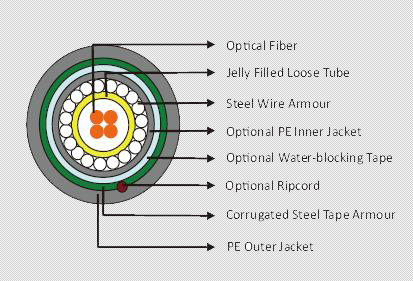

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-12 |
352.0 |
236.24 |
14.0 |
0.553 |
8000/1800 |
2650/595 |
Propiedades mecánicas
| Radio de curvatura mínima: |
|
Compresión de carga máxima: |
3000N |
| En virtud de instalación: |
20×OD |
Impacto repetido: |
4.4 N.m (J) |
| Durante la operación |
10×OD for unarmoured cables |
Twist (torsión): |
180×10 times, 125×OD |
| |
20×OD for armoured cables |
Flexión cíclica: |
25 cycles for armoured cables. |
| Gama de temperatura: |
|
|
100 cycles for unarmoured cables. |
| Rango de temperaturas de funcionamiento: |
-40℃(-40℉) to +70℃(+158℉) |
Crush Resistencia: |
263N/cm (150lb/in) |
| Rango de Temperatura de almacenamiento: |
-50℃(-58℉) to +70℃(+158℉) |
|
|
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado |
Flammability Test: OFNR/FT4 (UL1666) |
Pleno de Grado |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVCGrado |
Flammability Test: IEC60332-1 |
LSZH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
LSFROH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grado |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Características
• Loose tube jelly filled for superior fiber protection
• Colored coded fibers and binders for quick and easy identification during installation.
• High tensile strength design
• Superior mechanical and environmental performance
• Rugged and lightweight design
• Durable construction to withstand high water pressure
• Sufficient waterproof to withstand water penetration
|
