 Cables de Fibra óptica

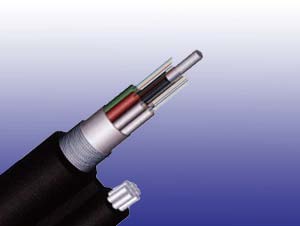

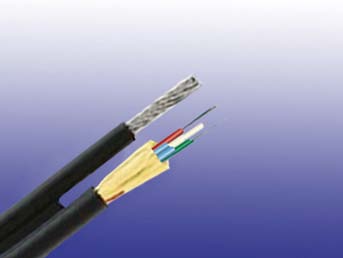

Fig8 Self-Supporting Cable
Solicitud
This cable is ideal for in long distance and interoffice communication in strong current zone, as well as power transmission system. The built in suspension stranded rope provides high tensile strength, enabling the cable suited for large span installation, resulting in time and installation cost savings. The suspension wire, being an integral part of the cable, is easily available for gripping, fastening and pulling. This cable is featured of its lightness, low dispersion and high tensile strength.
Descripción

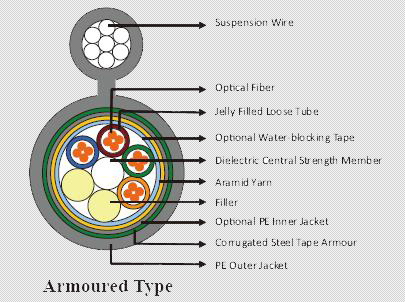

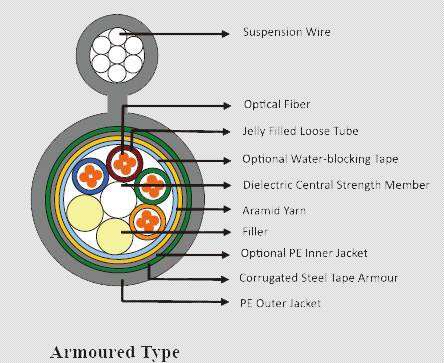

The cable consists of 5 to 36 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each jelly filled tube contains 4 -12 fibers. Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fiber glass is wound around the tube to provide physical protection and tensile strength. Water blocking materials are filled in the interstice of the cable core, core wrapping layer/water blocking tape. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. Cable cores are connected with the suspension wires by PE sheath to form a figure “8” shape. An optional ripcord is located under the jacket to facilitate jacket removal.
Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-24 |
389.0 |
261.07 |
12.6*25.1 |
0.50*0.99 |
2670/600 |
890/200 |
36-72 |
429.0 |
287.92 |
14.7*27.1 |
0.58*1.07 |
2670/600 |
890/200 |
96-144 |
571.0 |
383.22 |
20.2*32.6 |
0.80*1.29 |
2670/600 |
890/200 |
2-24 |
303.0 |
203.36 |
9.1*21.5 |
0.36*0.85 |
2670/600 |
890/200 |
36-72 |
332.0 |
222.82 |
11.1*23.5 |
0.44*0.93 |
2670/600 |
890/200 |
96-144 |
417.0 |
279.87 |
15.9*28.3 |
0.63*1.12 |
2670/600 |
890/200 |
Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-24 |
389.0 |
261.07 |
12.6*25.1 |
0.50*0.99 |
2670/600 |
890/200 |
36-72 |
429.0 |
287.92 |
14.7*27.1 |
0.58*1.07 |
2670/600 |
890/200 |
96-144 |
571.0 |
383.22 |
20.2*32.6 |
0.80*1.29 |
2670/600 |
890/200 |
Propiedades mecánicas
| Radio de curvatura mínima: |
|
Compresión de carga máxima: |
4000N for unarmored cables; |
| En virtud de instalación: |
20×OD |
|
6000N for armoured cables |
| Durante la operación |
0×OD for unarmoured cables |
Impacto repetido: |
4.4 N.m (J) |
| |
20×OD for armoured cables |
Twist (torsión): |
180×10 times, 125×OD |
| Gama de temperatura: |
|
Flexión cíclica: |
25 cycles for armoured cables. |
| Rango de temperaturas de funcionamiento: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Rango de Temperatura de almacenamiento: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistencia: |
220N/cm (125lb/in) |
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado |
Flammability Test: OFNR/FT4 (UL1666) |
Pleno de Grado |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grado |
Flammability Test: IEC60332-1 |
LSZH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
LSFROH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grado |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Características
• Suitable for self supporting aerial, duct and direct burial installation
• Tear away messenger simplifies grounding
• Ripcord allows easy cable entry and jacket removal
l• Compatible with existing Fig 8 hardware
• Flexible buffer tube simplifies routing and splicing.
• Loose tube jelly filled for superior fisber protection
• UV or moisture resistant for outdoor application
|
