 Cables de Fibra óptica
Breakout Cable
Solicitud

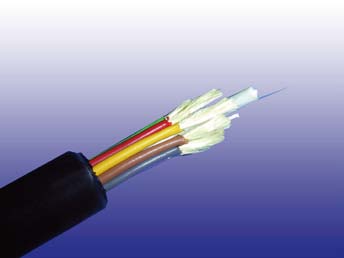

Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Descripción
The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.

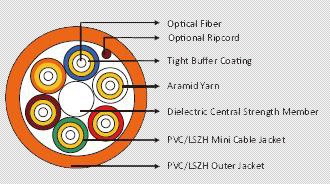

Construcción
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2 |
50．0 |
33．56 |
5．5 |
0．217 |
1200/270 |
490/100 |
6 |
110．0 |
73．83 |
12．5 |
0．493 |
2000/450 |
800/180 |
12 |
160．0 |
107．38 |
13．0 |
0．512 |
3515/790 |
1200/270 |
24 |
230．0 |
154．36 |
15．5 |
0．611 |
5470/1230 |
2000/450 |
Propiedades mecánicas
| Radio de curvatura mínima: |
|
Compresión de carga máxima: |
3000N for unarmoured |
| En virtud de instalación: |
20×OD |
|
5000N for armoured |
| Durante la operación |
10×OD for unarmoured cables |
Impacto repetido: |
2.9 N.m (J) 3×2 impacts |
| |
10×OD for unarmoured cables |
Twist (torsión): |
180×10 times, 125×OD |
| Gama de temperatura: |
|
Flexión cíclica: |
25 cycles for armoured cables. |
| Rango de temperaturas de funcionamiento: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Rango de Temperatura de almacenamiento: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistencia: |
1750N/cm (1000lb/in) |
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado |
Flammability Test: OFNR/FT4 (UL1666) |
Pleno de Grado |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grado |
Flammability Test: IEC60332-1 |
LSZH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 |
LSFROH Grado |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grado |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
Características
• Most rugged and "user friendly" cable design for Local Area Networks
• For installations where ease of termination and termination costs are important factors
• Short and moderate distance links between buildings or within a building, where multiple termination points are needed
• Breakout cables are designed for direct termination with standard connectors
• Cable ideal for direct pulling with wire mesh grips
• Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
• Flame-retardant or LSZH version for indoor installations
• Fungus-resistant, water-resistant, and UV-resistant for outdoor use
• High quality tight-buffered coating on each fi ber for environmental and mechanical protection
|
