 Cables de Fibra óptica
Tight Buffer Distribution PVC/LSZH Jack
Solicitud
This cable is used for interconnection of the distribution boxes and end devices. The cable is very suitable for various indoor and outdoor applications, including routing between buildings within ducts and inside building up to riser shafts.
Descripción

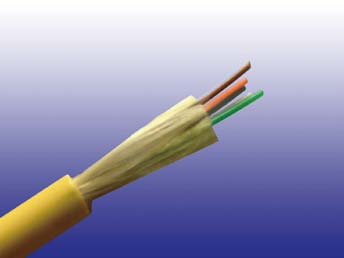

The Distribution Cable consists of color-coded PVC tight buffered fibers. The fibers are reinforced with aramid yarn for superior strength and contains no metallic elements. The fibers are jacketed with Flame Retardant PVC or LSZH compound.
Propiedades Físicas
Fibra Conde |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
2-6 |
26.0 |
17.45 |
5.0 |
0.197 |
1000/225 |
290/65 |
8-12 |
50.0 |
33.56 |
7.5 |
0.296 |
1425/320 |
500/112 |
14-24 |
140.0 |
93.96 |
13.0 |
0.512 |
2670/600 |
890/200 |
26-36 |
200.0 |
134.23 |
16.5 |
0.650 |
4448/1000 |
1490/335 |
38-48 |
300.0 |
201.34 |
18.0 |
0.709 |
4448/1000 |
1490/335 |
Propiedades mecánicas
| Radio de curvatura mínima: |
Compresión de carga máxima:2000N |
| En virtud de instalación: 20×OD |
Impacto repetido:2.9 N.m (J) 3×2 impacts |
| Durante la operación 10×OD |
Twist (torsión):180×10 times, 125×OD |
| Gama de temperatura: |
Flexión cíclica: 25 cycles for armoured cables |
Rango de temperaturas de funcionamiento: -40℃(-40℉) to +70℃(+158℉)
|
100 cycles for unarmoured cables. |
| Rango de Temperatura de almacenamiento: -50℃(-58℉) to +70℃(+158℉) |
Crush Resistencia: 1485N/cm (850lb/in) |
Fibra de Cumplimiento
Temperatura Ciclismo
Resistencia a la tracción
Crush
Impacto
Flexión repetida
De torsión
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
General Purpose Grado
Riser Grado
Pleno de Grado
FRPVC Grado
LSZH Grado
LSFROH Grado
FR Grado |
Flammability Test: OFN(UL1581)
Flammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6(UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596
Características
•Used in LAN and distribution applications where compact size and lightweight are required
•Suitable for both indoor and outdoor use - no need for splicing at the building entrance
•Flame-retardant or LSZH version for indoor installations
•Fungus-resistant, water-resistant, and UV-resistant for outdoor installations
•Cable can be armoured for additional protection in direct burial and aerial installations
•Highest specific strength-to-weight ratio for limited conduit space
•Economical for longer distance runs where cable cost is significant
•High quality tight-buffered coating on fiber for environmental and mechanical protection
|
