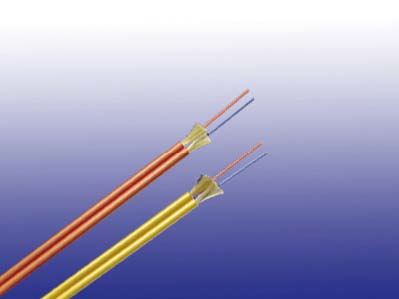

Tight Buffer Distribution PVC/LSZH Jack Cables
Solicitud
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.
Descripción

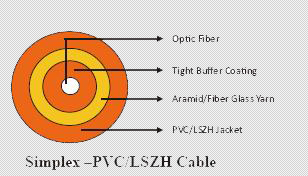

Simple
Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

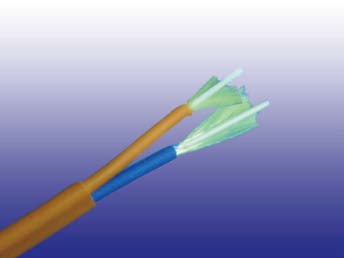

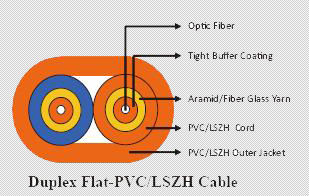

Piso Dúplex
Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

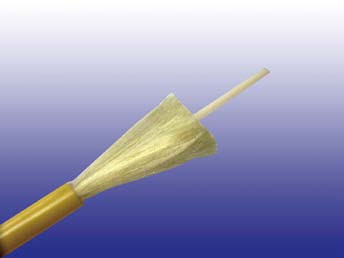

Duplex Ronda
Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

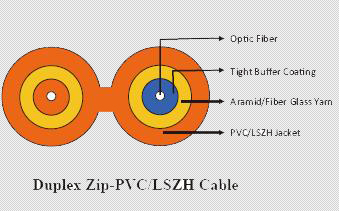

Duplex Zip
Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a Āzipcordā construction. The cable is unconnectorized.
Descripción
Propiedades Físicas
Fibra Conde |
Cable Tipo |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diámetro exterior nominal(mm) |
Diámetro exterior nominal(in) |
Si tira de carga máxima |
Instalación(N/Ib) |
En el Servicio de(N/Ib) |
1 |
Simplex 2.0mm |
7.6 |
5.10 |
2.0 |
0.079 |
490/110 |
290/65 |
1 |
Simplex 2.5mm |
7.8 |
5.23 |
2.5 |
0.098 |
490/110 |
290/65 |
1 |
Simplex 2.8mm |
8.0 |
5.37 |
2.8 |
0.110 |
490/110 |
290/65 |
1 |
Simplex 3.0mm |
8.2 |
5.50 |
3.0 |
0.118 |
490/110 |
290/65 |
2 |
Duplex Flat |
28.0 |
18.79 |
4.0X6.8 |
0.157X0.267 |
980/220 |
580/130 |
2 |
Duplex Round |
18.4 |
12.35 |
4.2 |
0.165 |
980/220 |
580/130 |
2 |
Duplex Zip |
15.0 |
10.07 |
2.4X4.8 |
0.094X0.188 |
980/220 |
580/130 |
Propiedades mecánicas
Radio de curvatura mínima:
En virtud de instalación:20hOD
Durante la operación :10hOD
Gama de temperatura:
Rango de temperaturas de funcionamiento:-40℃(-40℉) to +70℃(+158℉)
Rango de Temperatura de almacenamiento:-50℃(-58℉) to +70℃(+158℉)
|
Compresión de carga máxima:2000N
Impacto repetido: 2.9 N.m (J)3h2 impacts
Twist (torsión):180h10 times, 125hOD
Flexión cíclica: 25 cycles for armoured cables.;
100 cycles for unarmoured cables.
Crush Resistencia: 875N/cm (500lb/in) |
Fiber Compliance
| Temperature Cycling |
IEC60794-1-2-F2 |
Repeated Bending |
IEC60794-1-2-E6 |
| Tensile Strength |
IEC60794-1-2-E17 |
ATorsion |
IEC60794-1-2-E |
| Crush |
IEC60794-1-2-E3 |
Kink |
IEC60794-1-2-E10 |
| Impact |
IEC60794-1-2-E4 |
Cable Bend |
IEC60794-1-2-E11 |
| |
|
Cool Bend |
IEC60794-1-2-E11 |
Cumplimiento de Seguridad
| General Purpose Grado |
Flammability Test: OFN (UL1581) |
Riser Grado
Pleno de Grado
FRPVC Grado
LSZH Grado
LSFROH Grado
FR Grado |
Flammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ |
Norma de Cumplimiento
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596
Características
•Suitable for indoor use, such as routing connections in patching systems
•Short "patch cord" cables ideal for links between electronic equipment and fiber panels
•Compatible with wide variety of fiber optic connectors
•High quality tight-buffer coating on fiber for environmental and mechanical protection
•Customized jacket colors available for matching connectors.
•Private labeling on the cable outer jacket is also available.
|
