 Cable Material Rodante
EN 50264 Medium Wall Power & Control Cable
FIREROL FRL-MW-3S/FRL-MW-6S
1.8/3 or 3.6/6 kV - sheathed single core

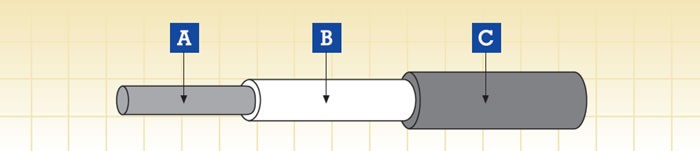

A. Conductor B. Insulation C. Sheath
Solicitud
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construcción
Conductor
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Aislamiento
LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109)
Vaina
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)
Electrical & Mechanical Properties
| Voltaje nominal |
1.8/3 kV or 3.6/6 kV |
| Temperatura máxima de conductor |
+90 deg (fixed installation) |
| Mínima admisible de temperatura ambiente |
-25/-40 deg (fixed installation) |
| Radio de flexión |
3 x Overall Diameter (D<12mm); |
| |
4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-MW-3S 1.8/3 kV
Nominal de sección
(a) |
conductor de diámetro (a) |
min. Significa espesor de aislamiento |
La vaina de espesor nominal min. |
Diámetro total min.(mm) |
Diámetro total max.(mm) |
peso |
Conductor de la resistencia en+20°C |
Resistencia de aislamiento en +20°C |
Resistencia de aislamiento en +90°C |
|
max |
min |
min |
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg/km |
Ω/km |
MΩ·km |
MΩ·km |
1.5 |
1.5 |
1.3 |
0.8 |
5.7 |
6.7 |
60 |
13.7 |
21.8 |
0.218 |
2.5 |
1.95 |
1.3 |
0.8 |
6.0 |
7.0 |
70 |
8.21 |
18.8 |
0.188 |
4 |
2.5 |
1.3 |
0.8 |
6.5 |
7.6 |
90 |
5.09 |
16.2 |
0.162 |
6 |
3.0 |
1.3 |
0.8 |
7.0 |
8.1 |
110 |
3.39 |
14.4 |
0.144 |
10 |
3.9 |
1.5 |
0.8 |
8.2 |
9.6 |
170 |
1.95 |
12.8 |
0.128 |
16 |
5.0 |
1.5 |
0.8 |
9.2 |
10.8 |
240 |
1.24 |
10.7 |
0.107 |
25 |
6.4 |
1.8 |
1.0 |
11.5 |
13.4 |
350 |
0.795 |
10.3 |
0.103 |
35 |
7.7 |
1.8 |
1.0 |
12.7 |
14.9 |
450 |
0.565 |
8.9 |
0.089 |
50 |
9.2 |
1.8 |
1.0 |
14.1 |
16.5 |
590 |
0.393 |
7.8 |
0.078 |
70 |
11.0 |
1.8 |
1.0 |
15.8 |
18.5 |
790 |
0.277 |
6.7 |
0.067 |
95 |
12.5 |
2.2 |
1.0 |
18.0 |
21.0 |
1050 |
0.210 |
6.5 |
0.065 |
120 |
14.2 |
2.2 |
1.0 |
19.6 |
22.9 |
1270 |
0.164 |
6.1 |
0.061 |
150 |
15.8 |
2.2 |
1.2 |
21.4 |
25.1 |
1590 |
0.132 |
5.8 |
0.058 |
185 |
17.5 |
2.4 |
1.2 |
23.4 |
27.4 |
1900 |
0.108 |
5.6 |
0.056 |
240 |
20.1 |
2.4 |
1.2 |
25.9 |
30.3 |
2490 |
0.0817 |
5.0 |
0.050 |
300 |
22.5 |
2.4 |
1.2 |
28.1 |
32.9 |
3010 |
0.0654 |
4.5 |
0.045 |
400 |
25.8 |
2.6 |
1.4 |
32.0 |
37.4 |
3980 |
0.0495 |
4.4 |
0.044 |
FRL-MW-6S 3.6/6KV
Nominal de sección
|
conductor de diámetro (a) |
min. Significa espesor de aislamiento |
La vaina de espesor nominal min. |
Diámetro total min.(mm) |
Diámetro total max.(mm) |
peso |
Conductor de la resistencia en+20°C |
Resistencia de aislamiento en +20°C |
Resistencia de aislamiento en +90°C |
|
max |
min |
min |
mm2 |
mm |
mm |
mm |
mm |
mm |
Kg/km |
Ω/km |
MΩ·km |
MΩ·km |
2.5 |
1.95 |
2.6 |
0.8 |
8.6 |
10.1 |
120 |
8.21 |
24.6 |
0.246 |
4 |
2.5 |
2.6 |
0.8 |
9.1 |
10.7 |
140 |
5.09 |
21.6 |
0.216 |
6 |
3.0 |
2.6 |
0.8 |
9.6 |
11.2 |
165 |
3.39 |
19.5 |
0.195 |
10 |
3.9 |
2.6 |
0.8 |
10.4 |
12.2 |
220 |
1.95 |
16.7 |
0.167 |
16 |
5.0 |
2.6 |
0.8 |
11.5 |
13.4 |
290 |
1.24 |
14.2 |
0.142 |
25 |
6.4 |
2.9 |
1.0 |
13.7 |
16.1 |
430 |
0.795 |
13.1 |
0.131 |
35 |
7.7 |
2.9 |
1.0 |
14.9 |
17.5 |
540 |
0.565 |
11.6 |
0.116 |
50 |
9.2 |
2.9 |
1.0 |
16.4 |
19.1 |
670 |
0.393 |
10.2 |
0.102 |
70 |
11.0 |
2.9 |
1.0 |
18.0 |
21.1 |
880 |
0.277 |
8.9 |
0.089 |
95 |
12.5 |
2.9 |
1.0 |
19.5 |
22.8 |
1100 |
0.210 |
8.0 |
0.080 |
120 |
14.2 |
2.9 |
1.2 |
21.4 |
25.1 |
1380 |
0.164 |
7.5 |
0.075 |
150 |
15.8 |
2.9 |
1.2 |
22.9 |
26.8 |
1660 |
0.132 |
6.9 |
0.069 |
185 |
17.5 |
3.2 |
1.2 |
25.1 |
29.4 |
2010 |
0.108 |
6.7 |
0.067 |
240 |
20.1 |
3.4 |
1.4 |
28.3 |
33.1 |
2670 |
0.0817 |
6.4 |
0.064 |
300 |
22.5 |
3.4 |
1.4 |
30.6 |
35.8 |
3170 |
0.0654 |
5.9 |
0.059 |
400 |
25.8 |
3.4 |
1.4 |
33.7 |
39.4 |
4150 |
0.0495 |
5.2 |
0.052 |
(a)= For information,indicative only
|
