IEC 60502-1 Cables

600/1000V, XLPE Insulated and Lead Sheathed Cables according to IEC 60502-1(unarmoured)

Application:

IEC 60502-1 cables are used for electricity supply in low voltage installation system, IEC 60502-1 cables are

suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations,

local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings

an enhanced resistance to aromatic hydrocarbons.

Construction

Conductors:

Conductors shall be Round Stranded (Non-compacted or Compacted) or shaped,

Class 2 as per IEC 60228. For smaller sizes up to and including 4 mm2, Solid Conductors,

Class 1 to IEC 60228 can also be provided based on special request.

Insulation:

XLPE Insulation material and thickness shall be as per IEC 60502-1 rated for 90°C continuos operation.

PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS 6346.

PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special

request.

Colour Code

Colour Code (1) :

1 Core : Red or Black

2 Cores : Red, Black

3 Cores : Red, Yellow, Blue

4 Cores : Red, Yellow, Blue, Black

5 Cores : Red, Yellow, Blue, Black, Green

Above 5 Cores : Black Cores with White numerals

Colour Code (2) :

1 Core : Brown or Blue

2 Cores : Brown or Blue

3 Cores : Brown, Black, Grey

4 Cores : Blue, Brown, Black, Grey

5 Cores : Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores :

Assembly / Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers Inner

Sheath compatible with the insulation material and the assembly is bedded with an extruded layer of PVC. Lead

Sheath Extruded lead Alloy Type "E" to BS 12548. Thickness of lead shall be as per IEC 60502-1. Cables with

other thickness of Lead Sheath can also be provided based on specific request.

ArmourGalvanized Steel Wires in accordance with IEC 60502-1 or BS 6346 or BS 5467 laid

helically over PVC bedding as per requirement. Galvanized Steel Tapes applied helically over PVC bedding in

accordance with IEC 60502-1

Outer Sheath

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of

PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC,

Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE,

LSF, CPE are available on request.

Cable Parameters:

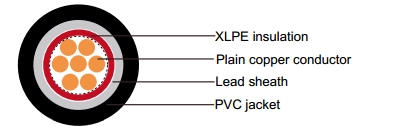

Single core(unarmoured)

IEC 60502-1 Cables


Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Inner Covering Thickness Nominal Lead Sheath Thickness Nominal Sheath Thickness Overall Diameter (Approx.)
mm² mm mm mm mm mm mm
1x10  3.6 0.7 1 1.2 1.4 12.2
1x16  4.5 0.7 1 1.2 1.4 13.1
1x25  5.6 0.9 1 1.2 1.4 14.6
1x35  6.7 0.9 1 1.2 1.5 15.8
1x50  8 1 1 1.2 1.5 17.4
1x70  9.4 1.1 1 1.2 1.6 19.1
1x95  11 1.1 1 1.3 1.6 21
1x120  12.4 1.2 1 1.3 1.7 22.8
1x150  13.8 1.4 1 1.4 1.7 24.8
1x185  15.3 1.6 1 1.4 1.8 27
1x240  17.5 1.7 1 1.5 1.9 29.7
1x300  19.5 1.8 1 1.6 2 32.2
1x400  22.6 2 1.2 1.7 2.1 36.6
1x500  25.2 2.2 1.2 1.8 2.2 40
1x630  28.3 2.4 1.2 1.9 2.4 44

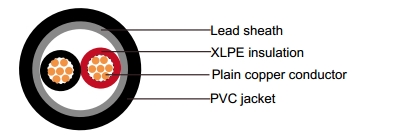

Two cores(unarmoured )

IEC 60502-1 Cables

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Inner Covering Thickness Nominal Lead Sheath Thickness Nominal Sheath Thickness Overall Diameter (Approx.)
mm² mm mm mm mm mm mm
2x2.5  1.8 0.7 1 1.2 1.8 14.4
2x4  2.3 0.7 1 1.2 1.8 15.4
2x6  2.8 0.7 1 1.2 1.8 16.4
2x10  3.6 0.7 1 1.2 1.8 18
2x16  4.5 0.7 1 1.2 1.8 19.8
2x25  5.6 0.9 1 1.2 1.8 22.8
2x35  6.7 0.9 1 1.3 1.8 25.1
2x50  8 1 1 1.4 1.9 28.5
2x70  9.4 1.1 1 1.5 2 32.1
2x95  11 1.1 1.2 1.6 2.1 36.2
2x120  12.4 1.2 1.2 1.7 2.2 39.8
2x150  13.8 1.4 1.2 1.8 2.4 43.9
2x185  15.3 1.6 1.4 1.9 2.5 48.6
2x240  17.5 1.7 1.4 2 2.7 54.1
2x300  19.5 1.8 1.6 2.2 2.9 59.5

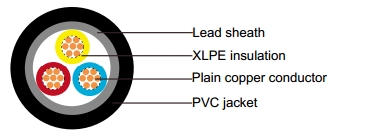

Three cores(unarmoured)

IEC 60502-1 Cables

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Inner Covering Thickness Nominal Lead Sheath Thickness Nominal Sheath Thickness Overall Diameter (Approx.)
mm² mm mm mm mm mm mm
3x1.5  1.4 0.7 1 1.2 1.8 14
3x2.5  1.8 0.7 1 1.2 1.8 14.9
3x4  2.3 0.7 1 1.2 1.8 16
3x6  2.8 0.7 1 1.2 1.8 17
3x10  3.6 0.7 1 1.2 1.8 18.8
3x16  4.5 0.7 1 1.2 1.8 20.7
3x25  5.6 0.9 1 1.2 1.8 24
3x35  6.7 0.9 1 1.3 1.8 26.5
3x50  8 1 1 1.4 1.9 30.2
3x70  9.4 1.1 1 1.5 2.1 34.1
3x95  11 1.1 1.2 1.6 2.2 38.5
3x120  12.4 1.2 1.2 1.7 2.3 42.4
3x150  13.8 1.4 1.4 1.9 2.5 47.2
3x185  15.3 1.6 1.4 2 2.6 51.9
3x240  17.5 1.7 1.4 2.1 2.8 57.7
3x300  19.5 1.8 1.6 2.3 3 63.6

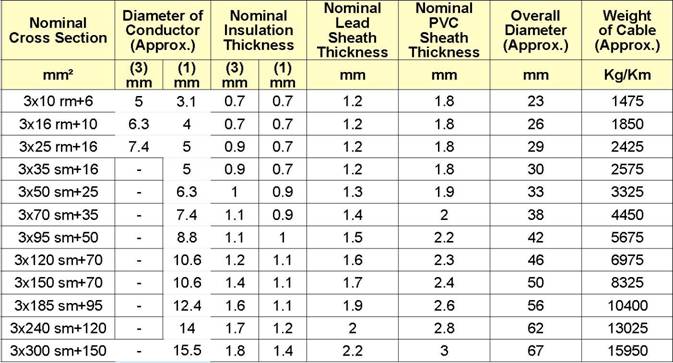

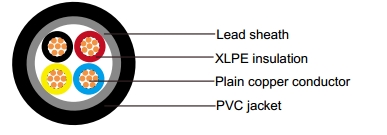

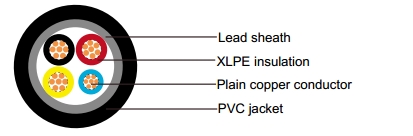

Four cores(unarmoured)

IEC 60502-1 Cables

Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Inner Covering Thickness Nominal Lead Sheath Thickness Nominal Sheath Thickness Overall Diameter (Approx.)
mm² mm mm mm mm mm mm
4x1.5  1.4 0.7 1 1.2 1.8 15.2
4x2.5  1.8 0.7 1 1.2 1.8 16.2
4x4  2.3 0.7 1 1.2 1.8 18.4
4x6  2.8 0.7 1 1.2 1.8 19.6
4x10  3.6 0.7 1 1.2 1.8 21.5
4x16  4.5 0.7 1 1.2 1.8 23.8
4x25  5.6 0.9 1 1.3 1.8 27.7
4x35  6.7 0.9 1 1.4 1.9 30.7
4x50  8 1 1 1.5 2.1 35.8
4x70  9.4 1.1 1.2 1.6 2.2 39.6
4x95  11 1.1 1.2 1.7 2.4 45.1
4x120  12.4 1.2 1.4 1.9 2.6 49.4
4x150  13.8 1.4 1.4 2 2.7 54.3
4x185  15.3 1.6 1.4 2.1 2.9 60
4x240  17.5 1.7 1.6 2.3 3.1 67.1
4x300  19.5 1.8 1.6 2.5 3.3 73.7
