EN 50306 Thin Wall Instrumentation & Control Cable

FIREROL FRL-TW-05M-OS

300/500 V - multi - core screened

EN 50306 Thin Wall Instrumentation & Control Cable

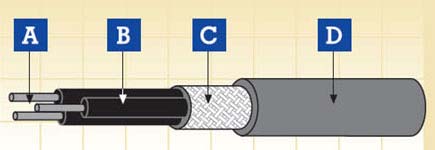

                                  A.Conductor     B.Insulation      C.Screen         D.Sheath

Anwendung

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Bau

Dirigent
Tinned annealed copper wires as defined in EN 50306-2

Isolierung
LSZH special compound

Gesamteindruck Bildschirm
Tinned annealed copper wires

Außenmantel
LSZH special compound (S1 & S2)

Electrical & Mechanical Properties

Nominal Voltage 300/500 V
Maximum Conductor Temperature +120/+150 deg (fixed installation)
Minimum Permissible Ambient Temperature -25/-40 deg (fixed installation)
Bending Radius 10 x Overall Diameter

Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3C; Fire propagation of bunched wires and cables;
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
NFF 16101; NFF 63808; BS6853 Smoke index

FRL-TW-05M-OS 300/500 V

Zahl der Kerne und der nominalen Querschnitt

Mindest-Dicke von Mantel an jedem beliebigen Punkt

Außendurchmesser

Gew
icht

(mm2)

(mm)

min. (mm)

max. (mm)

(kg/km)

2 x 0.5

0.20

3.5

4.3

30

3 x 0.5

0.20

3.7

4.5

30

4 x 0.5

0.20

4.0

5.0

40

2 x 0.75

0.20

3.9

4.7

30

3 x 0.75

0.20

4.0

5.0

40

4 x 0.75

0.20

4.5

5.5

60

2 x 1

0.20

4.2

5.2

40

3 x 1

0.20

4.5

5.5

55

4 x 1

0.20

5.0

6.0

70

2 x 1.5

0.20

5.1

6.1

60

3 x 1.5

0.20

5.4

6.4

80

4 x 1.5

0.20

6.0

7.0

100

2 x 2.5

0.20

6.4

7.4

90

3 x 2.5

0.20

6.8

7.8

120

4 x 2.5

0.20

7.5

8.5

140
