EN50288-7 Cables
XLPE Insulated, LSZH Sheathed Instrumentation Cables

EN 50288-7 Cables

XLPE Insulated, LSZH Sheathed, Individual & Overall Screened Instrumentation Cables (Multitriple) RE-2X(St)H-TiMF 90°C / 300 V

EN 50288-7 Cables

APPLICATION:

EN 50288-7 cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petr°Chemistry industry plants, power plants, natural gas and petroluem plants, etc... EN 50288-7 cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, EN 50288-7 cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoorand outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

STANDARDS

Basic design to EN50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454
Sunlight Resistance UL 1581 section 1200
Oil Resistance ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile

strength/min.60% of elongation, *** denotes optional.

VOLTAGE RATING

300V

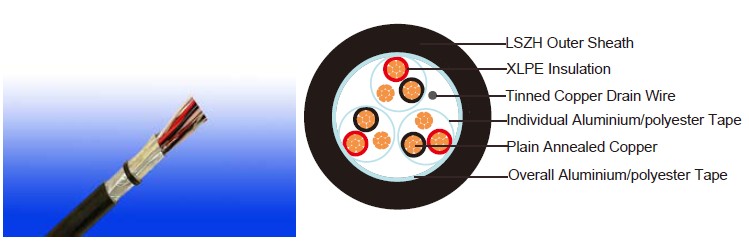

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

Insulation: Extruded cross-linked XLPE compound, EN 50290. 2-29.

Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper

drain wire, 0.5mm²

Triple: Three conductors twisted to form a triple

**TiMF Construction: Polyester tape above the triple, AL-PES tape over solid tinned copper drain wire, 0,60 mm

Lay-up: TiMF laid up in layers of optimum pitch

Separator: Polyester tape

Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2

Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type

SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and

anti termite properties can be offered as option.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath: Black or blue for intrinsically safe systems

Physical AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter

Electrical PROPERTIES

Conductor Area Size mm 2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
Conductor resistance (20°C)  Ω/km 36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) pF/m(Max.) 115
Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
Inductance mH/km(Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage Urms V 300
Test Voltage Core to Core V 1500
Core to Screen V 1500

CONSTRUCTION PARAMETERS

Caledonian Cable Code RE-2X(St)H-TiMF
No. of Triples x3xCross Section Nominal Insulation Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
  No.x3xmm2 mm mm mm kg/km
0.5mm2, Multi-striple
RE-2X(St)H-TiMF 2T0.5 2x3x0.5 0.35 1.0 9.7 104
RE-2X(St)H-TiMF 4T0.5 4x3x0.5 0.35 1.0 11.1 151
RE-2X(St)H-TiMF 5T0.5 5x3x0.5 0.35 1.1 12.4 183
RE-2X(St)H-TiMF 6T0.5 6x3x0.5 0.35 1.1 14.0 225
RE-2X(St)H-TiMF 8T0.5 8x3x0.5 0.35 1.1 14.9 283
RE-2X(St)H-TiMF 10T0.5 10x3x0.5 0.35 1.2 17.0 348
RE-2X(St)H-TiMF 12T0.5 12x3x0.5 0.35 1.2 17.6 385
RE-2X(St)H-TiMF 16T0.5 16x3x0.5 0.35 1.3 20.1 504
RE-2X(St)H-TiMF 20T0.5 20x3x0.5 0.35 1.4 22.3 616
RE-2X(St)H-TiMF 24T0.5 24x3x0.5 0.35 1.5 24.4 749
0.75mm2, Multi-striple
RE-2X(St)H-TiMF 2T0.75 2x3x0.75 0.38 1.0 10.6 121
RE-2X(St)H-TiMF 4T0.75 4x3x0.75 0.38 1.1 12.4 186
RE-2X(St)H-TiMF 5T0.75 5x3x0.75 0.38 1.1 13.7 242
RE-2X(St)H-TiMF 6T0.75 6x3x0.75 0.38 1.1 15.4 280
RE-2X(St)H-TiMF 8T0.75 8x3x0.75 0.38 1.2 16.7 362
RE-2X(St)H-TiMF 10T0.75 10x3x0.75 0.38 1.3 19.0 446
RE-2X(St)H-TiMF 12T0.75 12x3x0.75 0.38 1.3 19.7 495
RE-2X(St)H-TiMF 16T0.75 16x3x0.75 0.38 1.4 22.5 652
RE-2X(St)H-TiMF 20T0.75 20x3x0.75 0.38 1.5 24.9 833
RE-2X(St)H-TiMF 24T0.75 24x3x0.75 0.38 1.6 27.2 966
1.0mm2, Multi-striple
RE-2X(St)H-TiMF 2T1.0 2x3x1 0.4 1.0 11.5 154
RE-2X(St)H-TiMF 4T1.0 4x3x1 0.4 1.1 13.4 227
RE-2X(St)H-TiMF 5T1.0 5x3x1 0.4 1.1 14.8 286
RE-2X(St)H-TiMF 6T1.0 6x3x1 0.4 1.2 16.9 348
RE-2X(St)H-TiMF 8T1.0 8x3x1 0.4 1.2 18.1 443
RE-2X(St)H-TiMF 10T1.0 10x3x1 0.4 1.3 20.7 545
RE-2X(St)H-TiMF 12T1.0 12x3x1 0.4 1.3 21.4 621
RE-2X(St)H-TiMF 16T1.0 16x3x1 0.4 1.4 24.4 836
RE-2X(St)H-TiMF 20T1.0 20x3x1 0.4 1.5 27.1 1001
RE-2X(St)H-TiMF 24T1.0 24x3x1 0.4 1.6 29.6 1207
1.3mm2, Multi-striple
RE-2X(St)H-TiMF 2T1.3 2x3x1,3 0.45 1.1 12.8 185
RE-2X(St)H-TiMF 4T1.3 4x3x1,3 0.45 1.1 14.7 283
RE-2X(St)H-TiMF 5T1.3 5x3x1,3 0.45 1.2 16.5 357
RE-2X(St)H-TiMF 6T1.3 6x3x1,3 0.45 1.3 18.8 425
RE-2X(St)H-TiMF 8T1.3 8x3x1,3 0.45 1.3 20.1 553
RE-2X(St)H-TiMF 10T1.3 10x3x1,3 0.45 1.4 23.0 682
RE-2X(St)H-TiMF 12T1.3 12x3x1,3 0.45 1.5 24.0 767
RE-2X(St)H-TiMF 16T1.3 16x3x1,3 0.45 1.6 27.4 1022
RE-2X(St)H-TiMF 20T1.3 20x3x1,3 0.45 1.7 30.4 1252
RE-2X(St)H-TiMF 24T1.3 24x3x1,3 0.45 1.8 33.1 1511
1.5mm2, Multi-striple
RE-2X(St)H-TiMF 2T1.5 2x3x1,5 0.45 1.1 13.2 207
RE-2X(St)H-TiMF 4T1.5 4x3x1,5 0.45 1.2 15.4 314
RE-2X(St)H-TiMF 5T1.5 5x3x1,5 0.45 1.2 17.1 396
RE-2X(St)H-TiMF 6T1.5 6x3x1,5 0.45 1.3 19.5 482
RE-2X(St)H-TiMF 8T1.5 8x3x1,5 0.45 1.4 21.1 617
RE-2X(St)H-TiMF 10T1.5 10x3x1,5 0.45 1.5 24.1 765
RE-2X(St)H-TiMF 12T1.5 12x3x1,5 0.45 1.5 24.9 867
RE-2X(St)H-TiMF 16T1.5 16x3x1,5 0.45 1.6 28.4 1140
RE-2X(St)H-TiMF 20T1.5 20x3x1,5 0.45 1.7 31.6 1421
RE-2X(St)H-TiMF 24T1.5 24x3x1,5 0.45 1.8 34.4 1691

Note : Other conductor sizes & core configurations are available upon request.
