Germany Standard

Single-core cable

FLR6Y-A

Application and Description:

This FEP insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting

,charging,lighting,signal and instrument panel circuits.

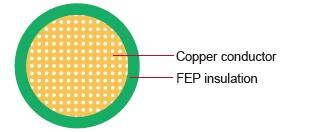

Cable Construction:

FLR6Y-A

Conductor:

Cu-ETP1 bare/tinned according to DIN EN 13602

Insulation:

FEP

Standard:

ISO 6722 Class F

Special properties:

Good Thermal properties

Technical Parameters:

Operating temperature: –65°C to +210°C





Conductor Construction

Insulation

Cable

Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical
resistance at 20°C
bare/tinned max.
Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x 0.35 7/0.26 0.8 54.4/55.5 0.2 1.2 1.3 4
1x 0.5 19/0.19 1.0 37.1/38.2 0.22 1.4 1.6 7
1x 0.75 19/0.23 1.2 24.7/25.4 0.24 1.7 1.9 9
1x1 19/0.26 1.35 18.5/19.1 0.24 1.9 2.1 12
1x 1.5 19/0.32 1.7 12.7/13.0 0.24 2.2 2.4 17
1x 2.5 19/0.41 2.2 7.6/7.82 0.28 2.7 3.0 27

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
