Germany Standard

Single-core cable

FLR12Y-A

Application:

This TPE-E insulated single-core cable is used for cable harnesses.

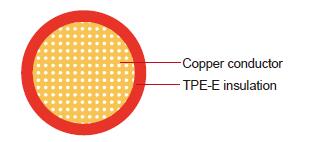

Construction:

FLR12Y-A

Conductor:

Cu-ETP1 bare according to DIN EN 13602

Insulation:

TPE-E Standard:ISO 6722 Class D

Technical Parameters:

Operating temperature: –40°C to +150°C



Conductor Construction

Insulation

Cable

Nominal Cross- section

No. and Dia. of Wires

Diameter of Conductor max.

Electrical
Resistance at 20°C max.

Nominal Thickness

Overall Diameter min.

Overall Diameter max.

Weight Approx.

mm2

no./mm

mm

mΩ/m

mm

mm

mm

kg/km

1x0.22

7/0.21

0.70

86.5

0.20

1.1

1.20

3.1

1x0.35

7/0.26

0.70

55.5

0.20

1.2

1.30

4.5

1x0.50

19/0.19

1.00

38.2

0.22

1.4

1.60

6.6

1x0.75

19/0.23

1.20

25.4

0.24

1.7

1.90

9.0

1x1.00

19/0.26

1.35

19.1

0.24

1.9

2.10

11

1x1.50

19/0.32

1.70

13.0

0.24

2.2

2.40

16

1x2.50

19/0.41

2.20

7.82

0.28

2.7

3.00

26

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
